Surface treatment processes of Fiti cover chemical cleaning, electro polishing, chemical conversion coating, anodizing and nickel plating.

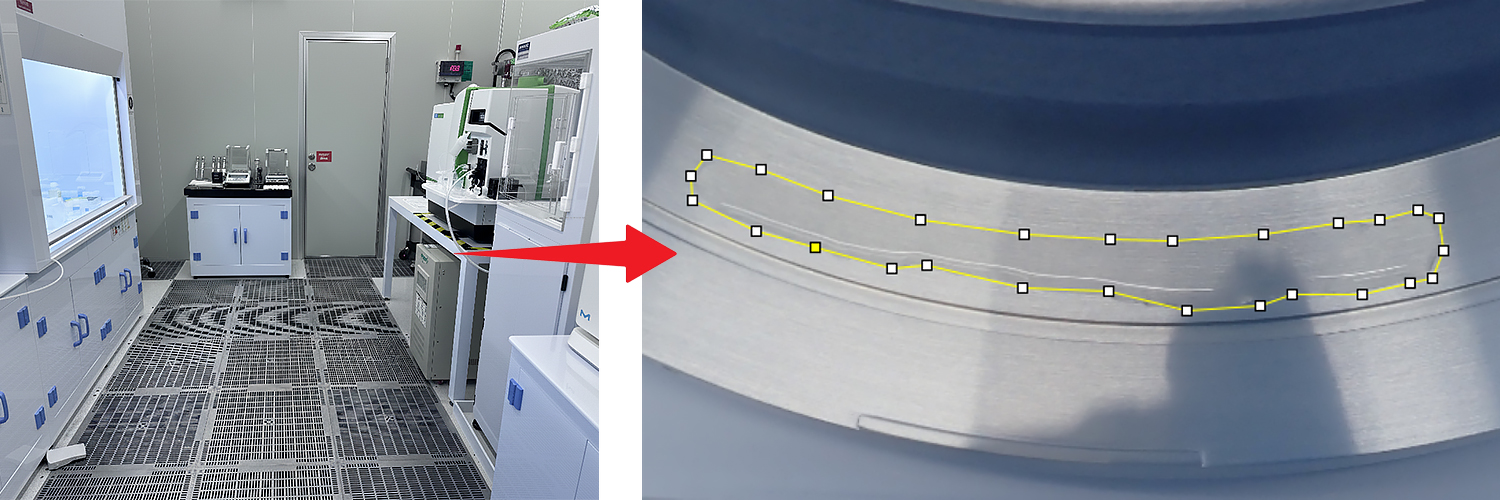

Chemical Cleaning

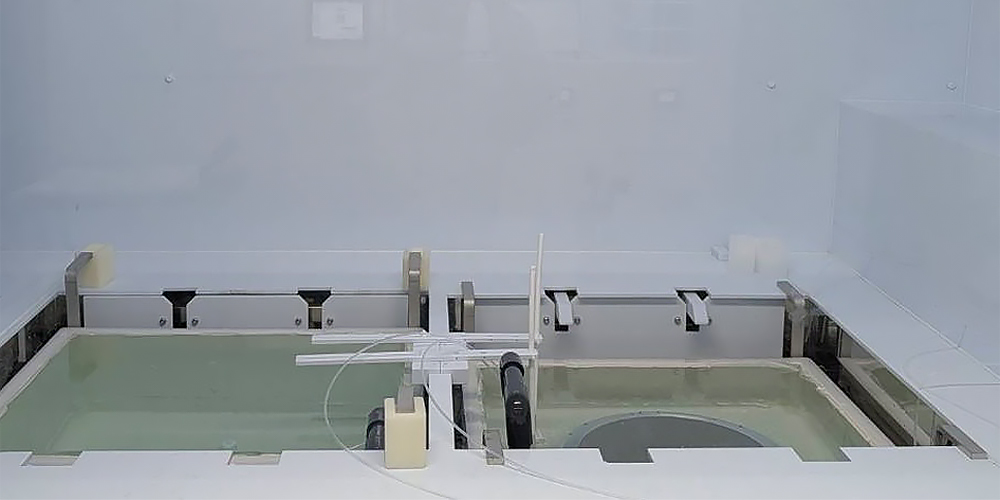

Fiti has advanced chemical cleaning lines to meet ICP-MS and LPC requirements in addition to conventional cleaning line for general cleanliness.
【 Product Material 】
‧ Aluminum
‧ Stainless Steel
‧ Titanium
‧ Plastic
【 Test Item for Cleanliness 】
‧ Ionic Contamination by IC
‧ Outgassing

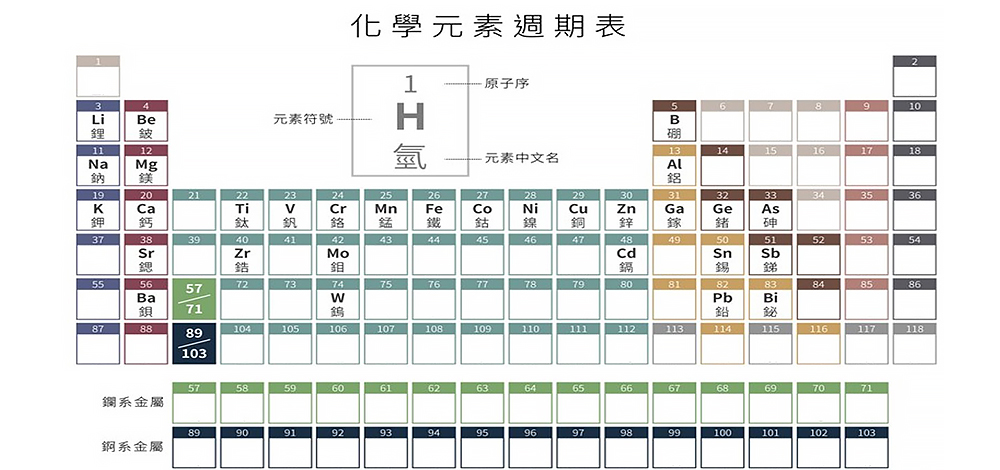

‧ Trace Metal Contamination by ICP-MS

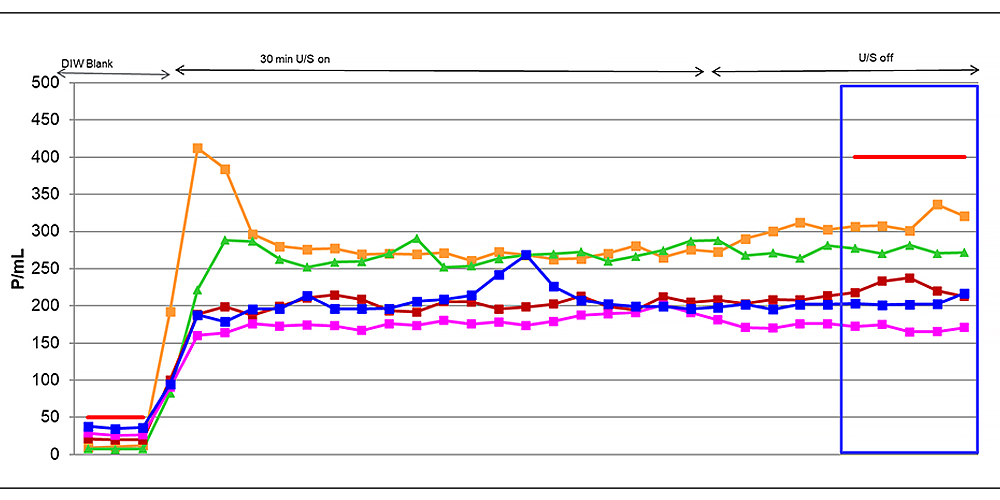

‧ Particulate Contamination by LPC
Electro-Polishing

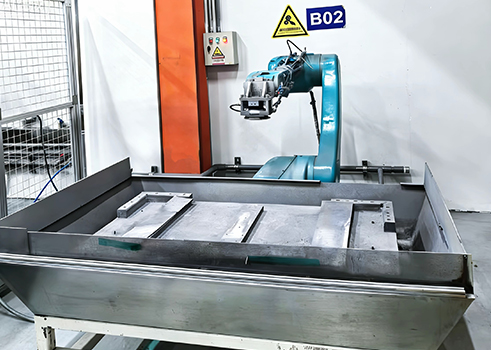

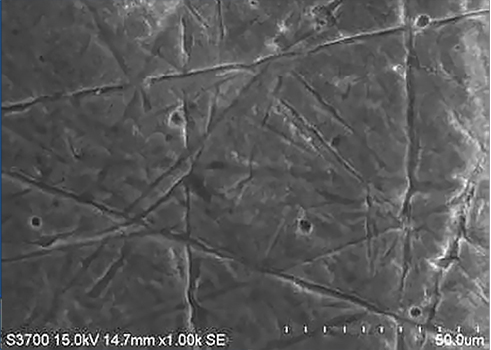

Remove burrs or improve brightness and properties of aluminum and stainless steel parts.
【 Stainless Steel 】
‧ Cr /Fe : ≥ 1.5
‧ Cr ox/Fe ox : ≥ 2.0
【 Aluminum 】
‧ Ionic Contamination by IC
‧ Outgassing
Chemical Conversion Coating
Both colorless and gold CCC processes in Fiti do not contain hexavalent chromium, which meets MIL-DTL-5541 Type II requirements.
Salt spray resistance capability of colorless coating is more than 168 hours.
Anodizing
Multiple anodizing treatment processes can meet different requirements from customers.

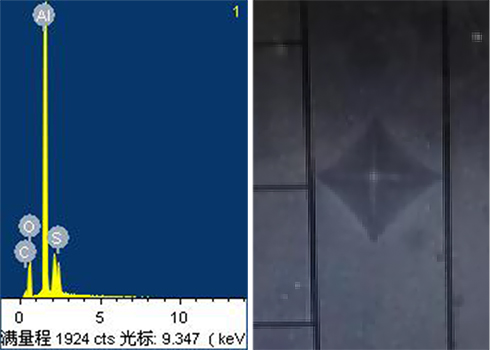

【 Hard Anodization 】
‧ Corrosion Resistance : ≥ 4 hours
‧ Microhardness : ≥ 400 HV
【 Sulfuric Acid Anodization 】

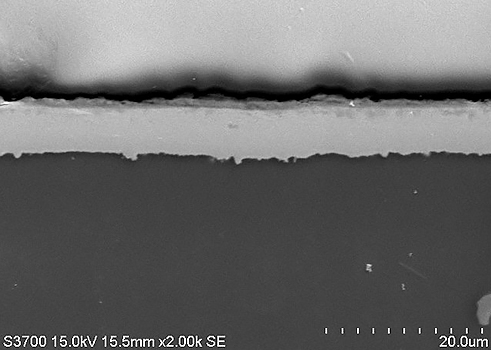

‧ Coating Thickness : 5~25μm
‧ Color : Red/Yellow/Blue/Black

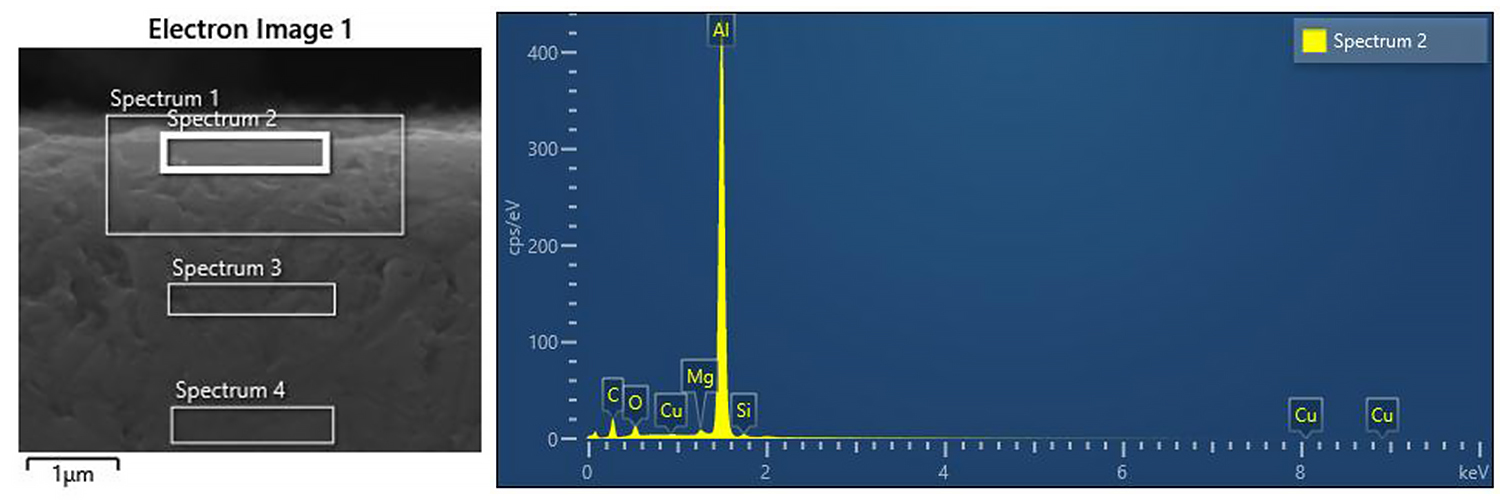

【 Oxalic Acid Anodization 】
‧ Corrosion Resistance : ≥ 4 hours
‧ Microhardness : ≥ 350 HV
Nickel Plating
Fiti specializes in manufacturing complex ENP parts, including large chamber body and high-precision holes.

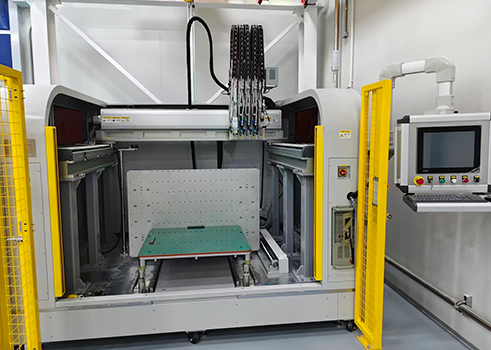

Fiti's SNP has uniform appearance and good adhesion on substrates, which can be applied to different component features including grooves and flat surfaces.
【 Electroless Nickel Plating 】
‧ Phosphorus Content : 10~12 wt.%
‧ Microhardness : ≥ 400 HK

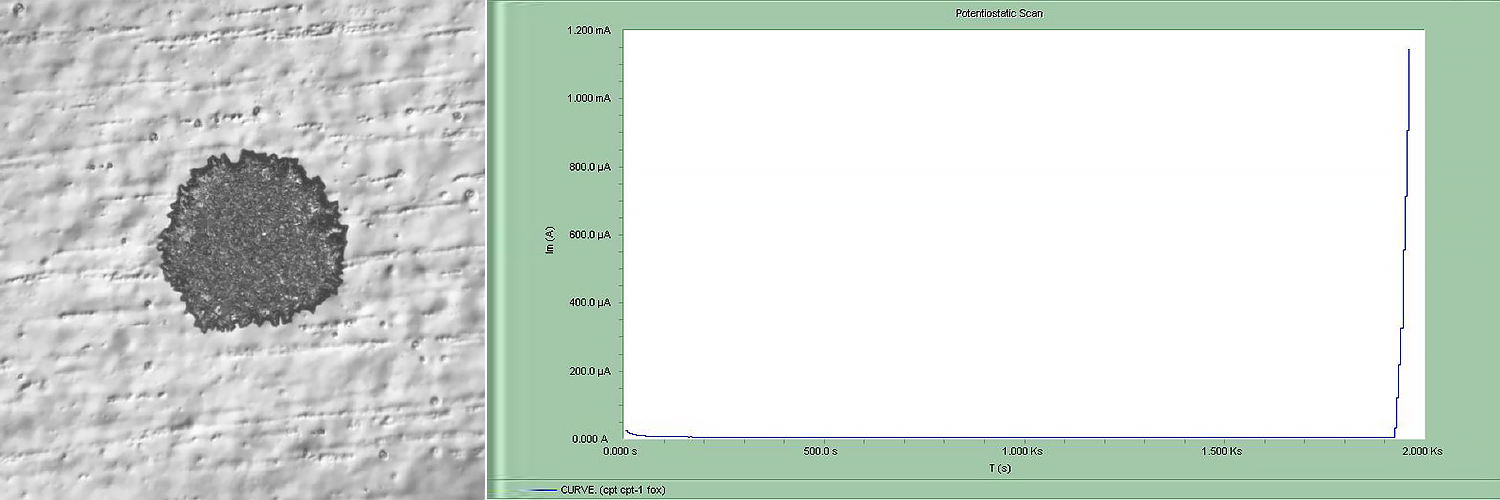

‧ Corrosion Resistance ( HCl Acid Immersion )
【 Selective Nickel Plating 】
‧ Coating Thickness ：5~ 20 μm
‧ Microhardness： ≥ 400 HK
