Machining

Technical Introduction

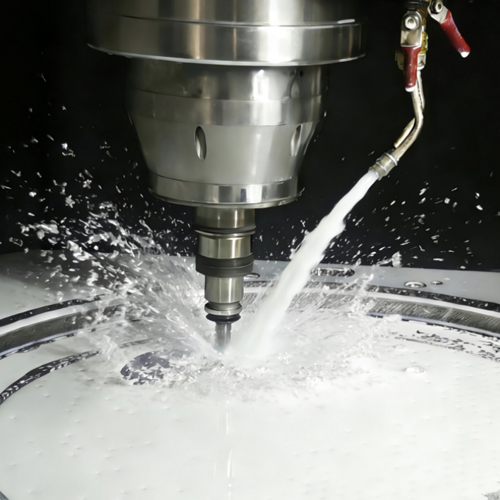

The manufacturing technology for complex structure part is for irregularly shape part with multi-layer structures, complex water/gas channels, and large-sized chamber, getting high quality surface and high precision machining by advanced machining processes.

Technical Features

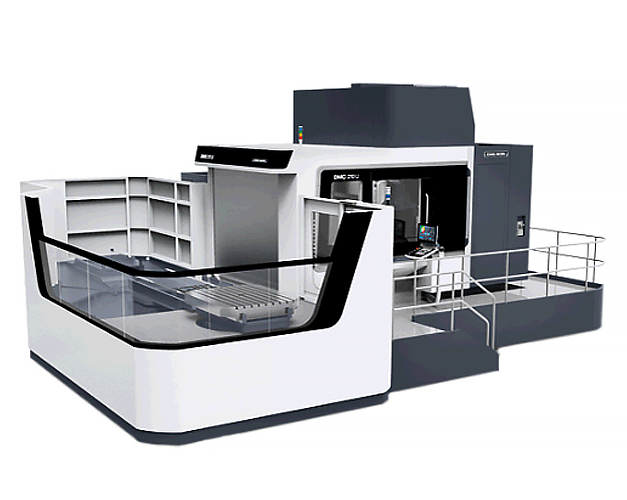

‧ Maximum size: 6000x4000x1400mm

‧ Position: 0.05mm

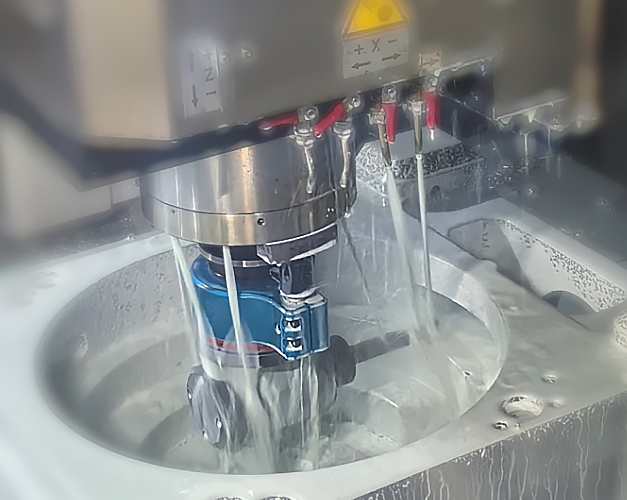

‧ Adaptor machining：Maximum extension depth:200 mm，Maximum tool diameter：25mm，Accuracy：0.02mm

Applications

Used in transfer chambers, process chambers, etc.

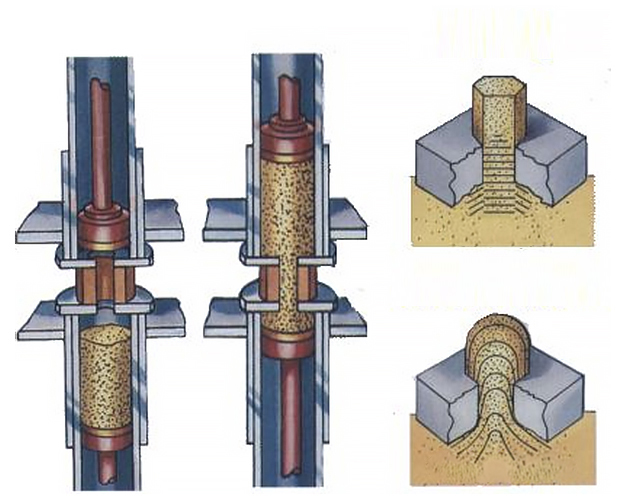

Extrude Hone

‧ Media Cylinder: 305 mm

‧ Media Flow Rate: 129L/Min

‧ Media Pressure: Min. 155/ Max. 800 psi

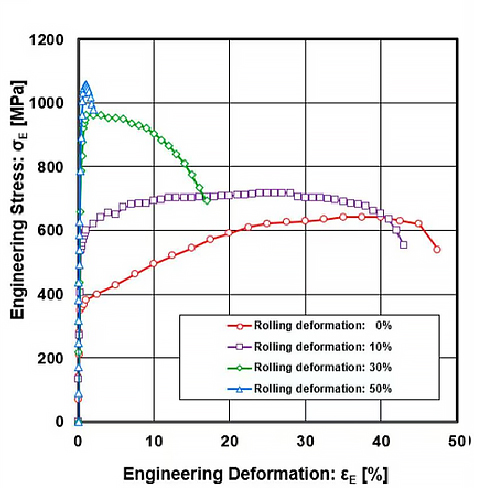

Roller Burnishing

‧ Toughness improvement: 15～30%

‧ Surface Finish ≤ Ra 8

‧ Roller Spec: D .44 inch Max

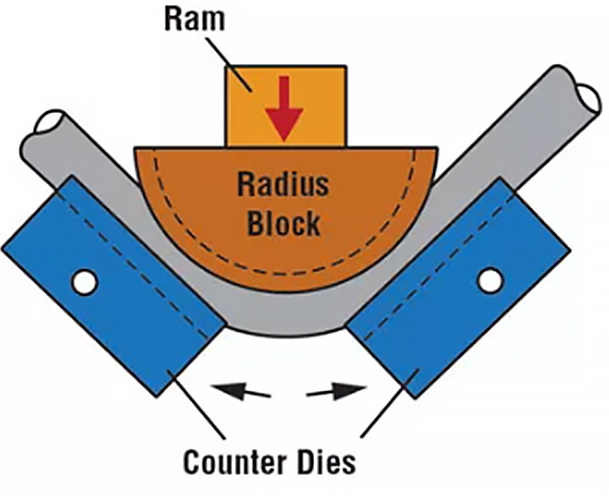

Bending

‧ Characteristic: 8-axis CNC、Push bending/ stretch bending 3D forming

‧ Precision: Feeding Precision±0.1mm、Bending Precision±0.1

‧ Bend Ovality < 10%

‧ Minimum bending diameter: 1.5D

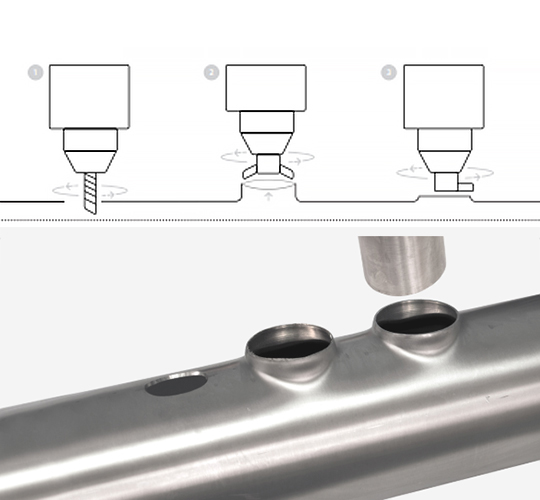

T-Pulling

‧ Applicable to many different materials such as Stainless Steel and Copper

‧ Process Flow: Oval hole preparation ->T pull ->Allowance removal ->Electropolishing

‧ Wall Thining Rate < 17%
