Mfg Automation Solution Biz Unit

Cable

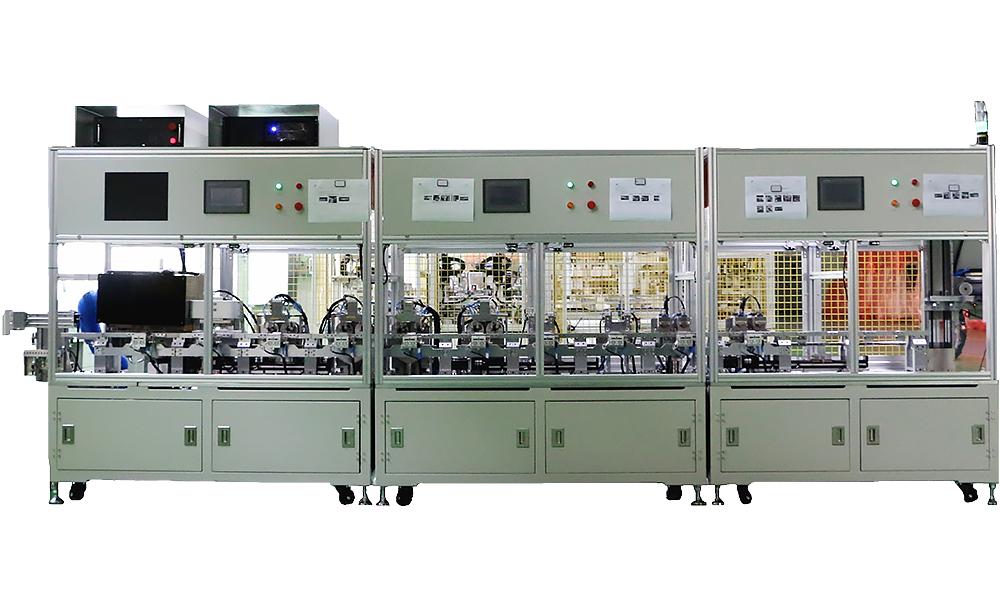

- Cable front processing equipment

一、Function Description：
The main function of the front processing equipment for cable are outer quilt laser cutting、outer quilt pull out、woven brushing straightly、woven back flip、woven cutting、fixture return system for cable front processing . Reduce manual operations time and improve production capacity and quality.

二、Key technology：Fixture Design & location accurately, brushing woven accurately& straightly.

三、Technical performance：
1. UPH：2000Pcs/H
2. Product spec.：Customize
3. OEE >85%
4. Yield：>98%

Semiconductor Assembly and test

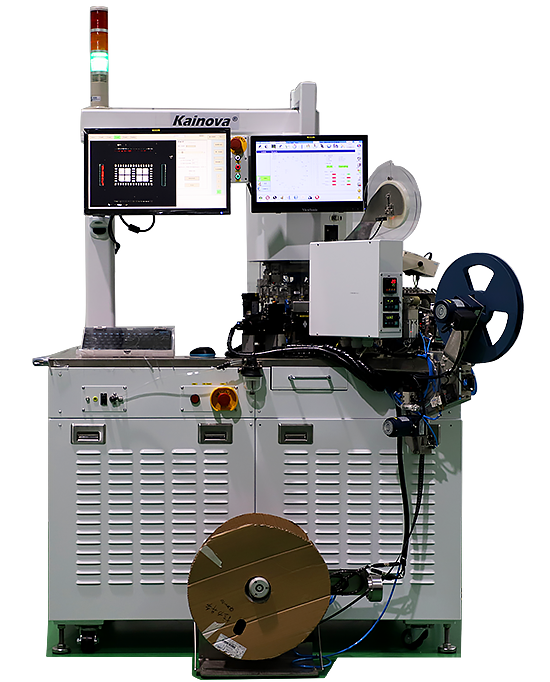

- IC Handler

一、Function Description：
IC Handler Test sorter for IC testing, marking, sorting, taping. The main functions are Vibrator feeding、AOI detection、elimination of defects、Bin division and tape reel packaging.

二、Key technology：3D5S AOI，PC_base Software development ，High speed suction nozzle system，High speed turret system and Motor pressure control.

三、Technical performance：
1. Applicable products：QFN / MLP (Size: from 1.0 x 0.6mm to 12 x 12mm）
2. UPH：Maximum 36K UPH
3. Size: 1.6m(L) x 1.4m(W) x 2.2m(H)
4. Stability：MTBA > 60 minutes ，MTBF > 200 hours
5. Vision Systems（Optional）：
-a. 2D Mark Vision Inspection
-b. 2D Direction Vision Inspection
-c. 2D In‐pocket (Inside Tape) Vision Inspection
-d. 5 Sided Vision Inspection (For MLP / QFN)
6. Input ：Vibrator
7. Output： Tape Reel
8. Test sites：4 sites
